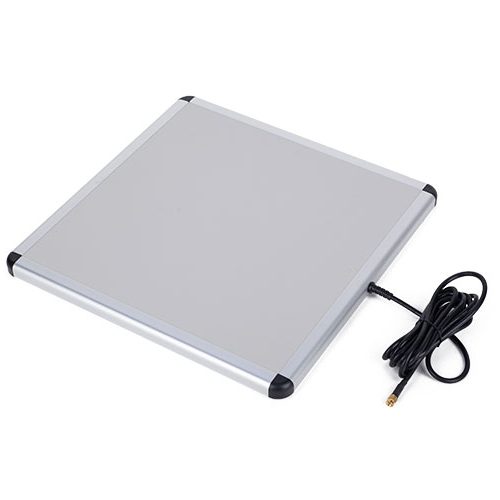

AD-A28BL HF ANTENNA

FLAT ANTI METAL ANTENNA

The flat plate anti metal antenna can limit the sensing area to the front of the antenna, which can prevent the misreading of the electronic labels outside the antenna; The antenna can be used on metal table, and its performance is not affected, and it can read small-size electronic labels stably.

This product is applicable to: library, archives and other fields.

COMPATIBLE WITH
  • Working frequency: 13.56MHz.
  • RF interface: SMA.
  • Antenna impedance: 50 Ω Maximum support power: 4W.
  • The metal resistant design is adopted and placed on the metal desktop, so the performance is not affected.
  • Shell material: ABS engineering plastics and sheet metal.
  • It is suitable for libraries, archives and other fields.
TOP-OF-THE-LINE PERFORMANCE
When it comes to performance, the FX9600 delivers the best. The exceptionally high RF sensitivity delivers the greatest accuracy and longer read ranges, even in dense RF environments with challenging materials. And with the most power in its class, you can support the highest throughput, as well as all of your sophisticated software applications.
UNRIVALED DEPLOYMENT SIMPLICITY
Host embedded applications directly on the FX9600, reducing deployment time, cost and complexity. With support for PoE and PoE+, there’s no need to run power drops to each reader — and with PoE+ or a 24V power supply, even long cable runs won’t reduce available RF power.
THE INDUSTRY'S BEST TCO
Designed for tough environments, the rugged FX9600 can handle it all — damp dusty work areas, extreme heat and subzero temperatures. And with the eight-port model, you can cover more dock doors and portals with fewer readers, significantly lowering your investment, deployment and management costs.
INDUSTRY USE
  • Transportation
  • Warehouse Management
  • Retail
Major Specifications
  • Dimensions: 445*365*20mm.
  • Weight: Approx. 1.8 kg.
  • Housing Material: PCB, ABS and aluminum.
  • Max Receive Sensitivity: -86 dBm monostatic.
  • RF interface: SMA.
  • Antenna impedance: 50 Ω Maximum power 4W.
  • Feeder length: 2.5m.
  • Sealing: IP55.
