Product Introduction

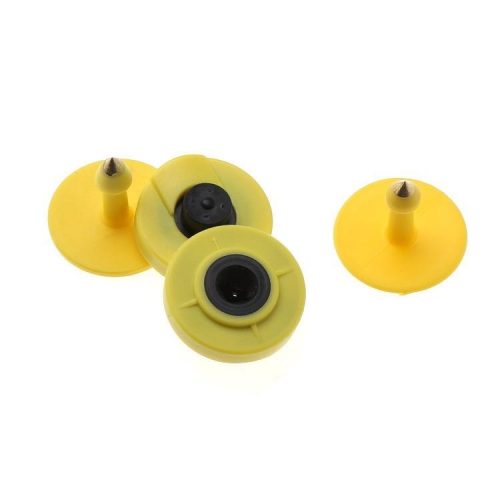

RFID electronic ear tag is mainly used in the tracking and identification management of animal husbandry, such as pigs, cattle, sheep, horses and other livestock. The animal ear tag forceps used in the installation are installed on the animal ears. The electronic ear label product is packaged with TPU material without odor and pollution. The electronic ear label is helpful to the information management of animal husbandry, and can effectively trace the breeding, epidemic prevention and meat quarantine.

Advantages And Functions

  • Has good waterproof and moisture resistance.
  • Packaged with TPU material without odor and pollution.
  • Made of high-grade anti-corrosion and high-temperature resistant materials by injection molding.
  • Shows a stable reading and writing level at extreme temperature.
  • Support low frequency, high frequency and ultra high frequency.
  • Robust and reliable - resistant to moisture, thermal fluctuations, vibration and shock.
Non-contact wafer
  • Low Frequency Chip (125KHz): TK4100, EM4102, EM4200 and T5577 and so on.
  • High frequency chip(13.56MHz): Ntag213、Ntag215、Ntag216、FM11RF08、Mifare1 S50、Mifare1 S70、Mifare Ultralight、I-CODE2、TI2048 And ST25.
  • Ultra-high Frequency Chip (860MHz-960MHz): UCODE GEN2, ALIEN H3 and IMPINJ M3 and so on.
Major Specifications
  • Optional Materials: 80g coated paper, 160g coated paper, 250g coated paper, PVC, pet, thermal paper, PP synthetic paper, DuPont paper, Teslin, etc. (namely coated paper + inlay + substrate free double-sided adhesive + release paper (or coated paper)).
  • Size: 250 * 25MM or specified by customer.
  • Chip: TK4100/EM4102/EM4200/T5577/FM11RF08/Mifare1/S50/Mifare1/S70/Mifare Ultralight/I-CODE2/TI2048/ST25(chips specified according to requirements).
  • Communication Protocol: ISO-15693/ISO-14443A.
  • Carrier Frequency: 13.56 MHZ /125KHZ.
  • Operating Temperature: - 25 ℃ ~ + 55 ℃ (industrial grade) (depending on material).
  • Storage Temperature: - 30/+80℃(depending on material).
  • User Space: 1Kbite/1Kbyte.
  • Working distance: 2-15CM(depending on working environment and reader model).
  • Color: Black / red / Blue / gray / orange / white, etc.
  • Weight: 5g ± 0.5g(depending on material).
