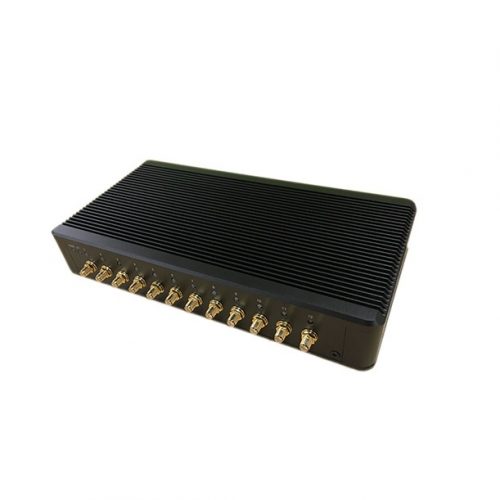

HL-F24C UHF READER

24 CHANNEL FIXED READER, RFID AND BACK-END APPLICATIONS CAN BE DEPLOYED EASILY AND QUICKLY

It is a high-performance UHF 24 port fixed RFID read-write device, which supports iso18000-6c / 6B two protocols. The working frequency band supports national standard dual frequency 920mhz-925mhz, 840mhz-845mhz and FCC, 902mhz-928mhz and ETSI, 865mhz-868mhz, output power 0dbm-33dbm. It has the advantages of long recognition distance, fast speed, strong multi label recognition ability, strong anti-interference ability, high-speed, high-speed, low-cost, high-cost, high-performance, low-cost, low-cost and high-cost High protection performance and easy installation and use.

COMPATIBLE WITH
  • Impinj R2000 platform and dual power amplifier synthesis circuit are adopted.
  • Processor ARM9 platform, main frequency 400MHz.
  • Built in Linux 2.6 operating system.
  • Support RSSI: perceived signal strength.
  • Support antenna detection function.
  • Expandable Bluetooth, WiFi wireless transmission.
TOP-OF-THE-LINE PERFORMANCE
When it comes to performance, the FX9600 delivers the best. The exceptionally high RF sensitivity delivers the greatest accuracy and longer read ranges, even in dense RF environments with challenging materials. And with the most power in its class, you can support the highest throughput, as well as all of your sophisticated software applications.
UNRIVALED DEPLOYMENT SIMPLICITY
Host embedded applications directly on the FX9600, reducing deployment time, cost and complexity. With support for PoE and PoE+, there’s no need to run power drops to each reader — and with PoE+ or a 24V power supply, even long cable runs won’t reduce available RF power.
THE INDUSTRY'S BEST TCO
Designed for tough environments, the rugged FX9600 can handle it all — damp dusty work areas, extreme heat and subzero temperatures. And with the eight-port model, you can cover more dock doors and portals with fewer readers, significantly lowering your investment, deployment and management costs.
INDUSTRY USE
  • Transportation
  • Warehouse Management
  • Retail
Major Specifications
  • Dimensions: 260mm×134mm×44mm.
  • Weight: Approx. 1.35 kg.
  • Housing Material: Alloy.
  • Max Receive Sensitivity: -86 dBm monostatic.
  • Air Protocols: ISO/IEC 18000-6B、6C/EPC C1Gen2、C2Gen2、GB/T 29768-2013.
  • Frequency (UHF Band): Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz US (only) Reader: 902 - 928 MHz.
  • Network Services: DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP.
  • Network Stack: IPv4 and IPv6
  • Security: Transport Layer Security Ver 1.2, FIPS-140.
  • API Support:Host Applications — .NET, C and Java EMDK/Embedded Applications — C and Java SDK.
  • Processor: Texas Instruments AM3505 (600 MHz).
  • Memory: Flash 512 MB; DRAM 256 MB.
  • Operating System: Linux.
  • Management Protocols: RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP.
  • RF interface: 24 reverse polarity TNC antenna interfaces.
  • Communications: 10/100 BaseT Ethernet (RJ45); USB Host & Client (Type A & B); Serial (DB9).
  • General Purpose I/O: 4-way optocoupler input and 4-way relay output.
  • Power Supply: POE (802.3af)/POE+ (802.3at) +24V DC((UL Approved)).
  • Antenna Ports: FX9600-4: 4 monostatic ports; (Reverse Polarity TNC)/FX9600-8: 8 monostatic ports; (Reverse Polarity TNC).
  • Operating Temp.: -4° to +131° F/-20° to +55° C.
  • Storage Temp.: -40° to +158° F/-40° to +70° C.
  • Humidity: 5-95% non-condensing.
  • Sealing: IP55.
