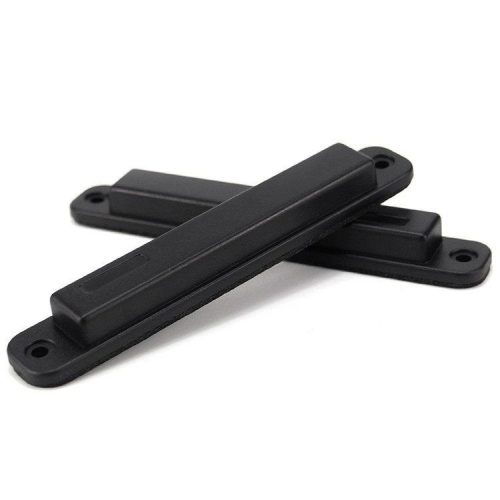

ABS ANTI-METAL LABELS

Scope Of Application

Large open-air power equipment inspection, large tower and pole inspection, large and medium-sized elevator inspection, tray management, large pressure vessels, liquefier cylinders, factory equipment management, line inspection, metal bridge quality inspection, tunnel inspection, machine identification, vehicle license, metal container management, product tracking of various electrical household equipment, etc.

  • Working frequency: 13.56mhz/860 ～ 960MHz.

  • Communication Protocol: ISO-18000 6B/6C(C1G2).
  • Material: High temperature resistant industrial ABS material.
  • Label Size: 134 * 21 * 14.5mm (size can be customized).
  • Product Weight: 20g.
  • Working distance: About 1-5m (related to reader device configuration)
  • Printing: Color, printing and coding can be customized.

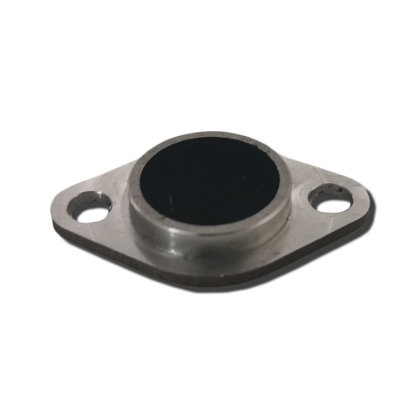

ANTI COLLISION/ANTI-METAL LABELS

Product introduction

RFID anticollision metal special label is a special UHF RFID special label made of special materials, which has been tested at high and low temperature alternately, wear-resistant, anti-aging and high temperature under high temperature.

UHF RFID anti-collision anti metal special label has strong adaptability to the environment, can withstand 180 ℃ high temperature, and has considerable pressure resistance, can withstand up to 3 tons of weight lamination at room temperature, and has high protection level of IP68.

Scope Of Application

Inspection of large open-air power equipment, inspection of large iron towers and poles, inspection of large and medium elevators, pallet management, large pressure vessels, liquefier cylinders, factory equipment management, line inspection, metal bridge quality inspection, tunnel inspection, machine identification, vehicle license plate, metal container management, product tracking of various power household equipment, etc.

Tag Applications
  • The surface material of RFID self-adhesive electronic label is usually coated paper, composite paper, pet and other materials
  • RFID Label is widely used in Clothing management, clothing management, home textile management, luggage management, asset management, etc.
  • RFID adhesive electronic label is produced by PET substrate + metal aluminum film etching process after coating, and pi+ copper antenna can be used, which has better waterproof and dustproof performance.
  • RFID laundry label is mainly used in the laundry industry, can track, check the washing clothes, high temperature, humidity and corrosion, non-toxic and insulation, compression performance, generally silicone material.
Major Specifications
  • Materials: Silicone, Plastic, Velcro strap, Nylon, PVC, Soft glue, Cloth, Paper and other materials.
  • Common Size: 250 * 25MM or specified by customer or specified by customer.
  • Chip: UCODE GEN2, ALIEN H3, IMPINJ M3 and so on.
  • Communication Protocol: ISO-18000 6B/6C(C1G2).
  • Carrier Frequency: 860MHz-960MHz.
  • Operating Temperature: - 10 ℃ ~ + 60 ℃ (industrial grade) (depending on material).
  • Storage Temperature: - 30/+70℃(depending on material).
  • User Space: 1Kbite/1Kbyte/96bit EPC ID.
  • Working distance: 0.1-2M(depending on working environment and reader model).
  • Weight: < 2g (depending on material).
  • Read and write times: 100 thousand times.
  • Data storage time: 10 years.
