RFID SOFT/ANTI-METAL LABELS

Product Introduction

Anti metal tag is a kind of new material with anti-interference function, which effectively solves the problem of metal carrier interfering with the RF signal of the tag attached on its surface.

Tag is a kind of UHF flexible printable metal resistant RFID electronic tag encapsulated with a special material, which solves the problem that ordinary metal resistant tags cannot be attached to irregular or curved metal.

The flexible metal resistant label, on the basis of the metal resistant label, increases the flexibility of the ordinary label, which can be pasted on the bending position and corner where the ordinary metal resistant label cannot be fixed, and has stable performance, which can prevent the fixed label from falling.

Additional

The anti metal electronic label pasted on the metal has good reading performance. According to EPC C1G2 (ISO 18000-6c) standard, it can be used in RFID printer

RFID SOFT/ANTI-METAL LABELS

Advantages And Functions

  • Excellent reading range on metal.
  • In accordance with ROHS standards.
  • Solid – the label can withstand the impact of a 1kg ball falling from a height of 1.5m.
  • Protection class - IP68.
  • 1 & 2D barcode printing and coding.

Tag Application

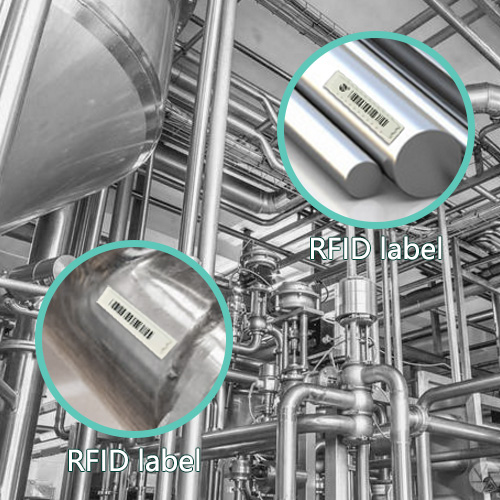

It is suitable for the environment rich in metal, nonmetal and liquid. It is widely used in storage management, asset management, logistics supply chain, commercial retail, traceability supervision, power inspection and other RFID fields. This kind of label has industry-leading printing compatibility and strong durability. At the same time, the label is suitable for curved surfaces (such as cylinder bottles, pipes, metal containers and fixed assets), which are not easy to fall, and also has good environmental resistance.

Major Specifications
  • Material of product application surface: material of product application surface PPS and epoxy resin.
  • Common Size: 70*30*1 MM or specified by customer or specified by customer.
  • Chip: UCODE GEN2, ALIEN H3, IMPINJ M3 and so on.
  • Communication Protocol: ISO-18000 6C(C1G2).
  • Carrier Frequency: 860MHz-960MHz.
  • Operating Temperature: - 40 ℃ ~ + 85 ℃ (industrial grade) (depending on material).
  • User Space: 32bite.
    EPC 96-bits/128-bits, Access Password 32-bit.
    TID 48-bit, TID number is unique in the world and cannot be modified
  • Working distance: 0.1-10m(depending on working environment and reader model).
  • Read and write performance: readable and writable (customers can repeatedly write content to the chip 100,000 times).
  • Weight: < 0.75g (depending on material).
  • Warranty: 1 year or 200 washes (based on the first item reached).
  • Data storage time: 10 years.
  • Installation method: Default common Gum back, can customize 3M back.
  • RoHS: RoHS compliant.
  • Customization: Printing logo, writing code, serial number, bar code, design, etc.
Reliability Testing
  • RoHS: Passed, the material passed SGS certification.
  • Working temperature: -25 degrees ~ 110 degrees.
  • Ironing temperature (at 4bar pressure): At 4bar pressure) 85 degrees @ 60 minutes, 120 degrees @ 10 minutes, 180 degrees @ 10 seconds.
  • Humidity: 5 ~ 95% RH.
  • High and low temperature alternating test: -40 degrees to +150 degrees 7 high and low temperature alternating cycles, a total of 2 consecutive days passed the test.
  • Maximum pressure: 20 bar.
