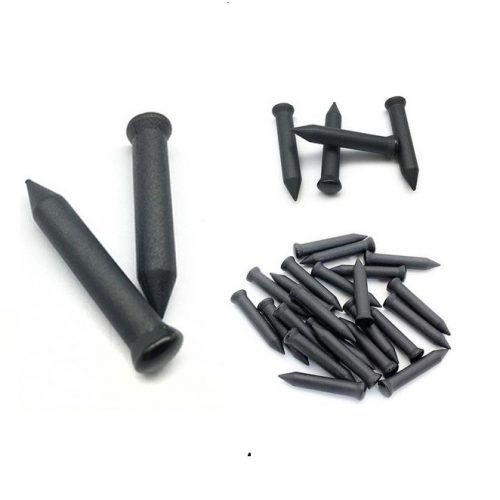

TREE NAIL RFID LABELS
RFID nail tag is designed for durability, with high resistance to moisture, vibration and impact. This kind of tag is made of high-grade anti-corrosion and high temperature resistant materials with refined mould. It is internally packaged with RF card chip, filled with epoxy resin and combined by ultrasonic welding. It can protect the internal RFID electronic chip and antenna during installation and use.
Advantages And Functions
- Has good waterproof and moisture resistance.
- Made of high-grade anti-corrosion and high-temperature resistant materials by injection molding.
- Shows a stable reading and writing level at extreme temperature.
- Support low frequency, high frequency and ultra high frequency.
- Fast and safe installation – labels are easy to install in place and almost impossible to remove.
- Robust and reliable - resistant to moisture, thermal fluctuations, vibration and shock.
- Low Frequency Chip (125KHz): TK4100, EM4102, EM4200 and T5577 and so on.
- High frequency chip(13.56MHz): Ntag213、Ntag215、Ntag216、FM11RF08、Mifare1 S50、Mifare1 S70、Mifare Ultralight、I-CODE2、TI2048 And ST25.
- Ultra-high Frequency Chip (860MHz-960MHz): UCODE GEN2, ALIEN H3 and IMPINJ M3 and so on.
- Optional Materials: 80g coated paper, 160g coated paper, 250g coated paper, PVC, pet, thermal paper, PP synthetic paper, DuPont paper, Teslin, etc. (namely coated paper + inlay + substrate free double-sided adhesive + release paper (or coated paper)).
- Size: 250 * 25MM or specified by customer.
- Chip: TK4100/EM4102/EM4200/T5577/FM11RF08/Mifare1/S50/Mifare1/S70/Mifare Ultralight/I-CODE2/TI2048/ST25(chips specified according to requirements).
- Communication Protocol: ISO-15693/ISO-14443A.
- Carrier Frequency: 13.56 MHZ /125KHZ.
- Operating Temperature: - 25 ℃ ~ + 55 ℃ (industrial grade) (depending on material).
- Storage Temperature: - 30/+80℃(depending on material).
- User Space: 1Kbite/1Kbyte.
- Working distance: 2-15CM(depending on working environment and reader model).
- Color: Black / red / Blue / gray / orange / white, etc.
- Weight: 5g ± 0.5g(depending on material).
